Grading, Swales and Drains: Which Problem Is Each Trying to Solve?

Three plain-language definitions

Grading is the shaping and setting of ground levels. A grade is the relative height between points, and a graded surface can guide surface water toward or away from a location. The approach depends on the site, structures, access, and intended use.

A swale is a shallow, broad, graded depression or channel. It provides a defined surface path instead of leaving water to find an irregular route through a yard. It may be planted, landscaped, or left as a simple ground form, subject to the site and maintenance needs.

A drain is a collection or conveyance point, which may include an inlet, channel, pipe, or outlet. It gathers water at one location or carries it between points. A drain is not just the visible grate or pipe: the inlet, route, connection, and outlet all matter.

These are general descriptions, not a conclusion about a property. A photo or short description cannot establish the cause of standing water, seepage, erosion, settlement, or movement.

What problem is each trying to solve?

In practice, a site may use more than one. Grading establishes surface form, a swale carries surface flow, and a drain collects water where a surface route alone may not suit. Transitions matter: a drain without a workable outlet, or a swale interrupted by a wall or driveway, raises different questions from the original observation.

A simple decision tree for the first conversation

Use this to organize observations, not as a design method:

• Is the concern mainly about relative ground height? Document apparent high points, low points, slopes, and where the ground meets a building, path, driveway, or wall. Grading may be part of the discussion. See grading and earthworks for context.
• Does water appear to cross a broad area at the surface? A shallow swale or another surface route may be considered, depending on space, access, soil, and the receiving location. A swale is not automatically appropriate for every slope or boundary.
• Does water collect at one point or need a contained route? A drain may be considered, with attention to the inlet, route, outlet, maintenance, and existing connections. See drainage site prep for context.
• Is a retaining wall, steep slope, or slope transition involved? Wall and surface drainage can interact. The guide Retaining Wall Drainage: What to Look for Behind a Wall offers an observation checklist, while retaining walls covers the related service area.

Photo checklist for a useful scope review

Photos cannot replace a site visit, but a consistent set can sharpen the initial conversation. From safe locations, consider providing:

If possible, record when the photos were taken, whether there had been recent rain or snowmelt, and what changed over time. Approximate distances or a hand-marked sketch can orient a reviewer, but a photo is not a grade survey or engineering determination. Avoid unstable edges, fast-moving water, exposed wiring, and other hazards.

• Wide views of high and low points: Photograph the area from more than one direction, showing the relationship between the house, yard, driveway, walkways, and slope.
• Downspouts and visible outlets: Show where downspouts discharge and where water leaves a pipe or channel. Note whether an outlet is open, blocked, damaged, or unknown; do not move components.
• Walls and edges: Include the face and base of retaining walls, garden walls, curbs, steps, and other flow interruptions. Note visible cracks, displaced materials, or damp areas without interpreting their cause.
• Slope transitions: Photograph changes in grade, swales, ditches, driveway edges, and places where a slope meets a level area.
• Adjacent flow: Show observable water arriving from an uphill yard, lane, roof, neighbouring area, or other adjacent surface. Do not enter another property to collect evidence.
• Access: Include gates, narrow side yards, overhead obstructions, stairs, fences, parked vehicles, and other access conditions that a reviewer should know about.

When a qualified or municipal review may be needed

Ask for appropriately qualified input when observations involve a steep or unstable slope, wall movement, significant erosion, subsurface seepage, a building or foundation concern, buried utilities, or an outlet whose ownership or destination is uncertain. Review is also prudent when work could affect a neighbouring property, shared access, a public right-of-way, or an existing stormwater connection. Municipal questions may include whether review or coordination is required; this page does not identify the local rule.

For excavation, underground routes, or substantial ground-material changes, see excavation. Equipment, sequence, temporary support, and surface treatment depend on conditions this guide cannot establish.

Scope limits and next step

This guide is general information for organizing a conversation. It is not a diagnosis, survey, drainage design, structural assessment, legal opinion, permit determination, or engineering advice. It does not determine cause, required grade or slope, pipe size, drainage capacity, structural adequacy, outlet legality, or work needed at a property. No result is guaranteed; any scope remains subject to site conditions, access, approvals, and review.

If you have photos, a short description, and the locations of high points, low points, downspouts, outlets, walls, slopes, adjacent flow, and access constraints, you can get in touch to request a restrained scope review. The conversation can identify missing information and whether a qualified or municipal reviewer should be involved before work is discussed further.

A static decision path

Plain-language definitions · What each may address · Conversation prompts · Photo checklist · When another review may be needed

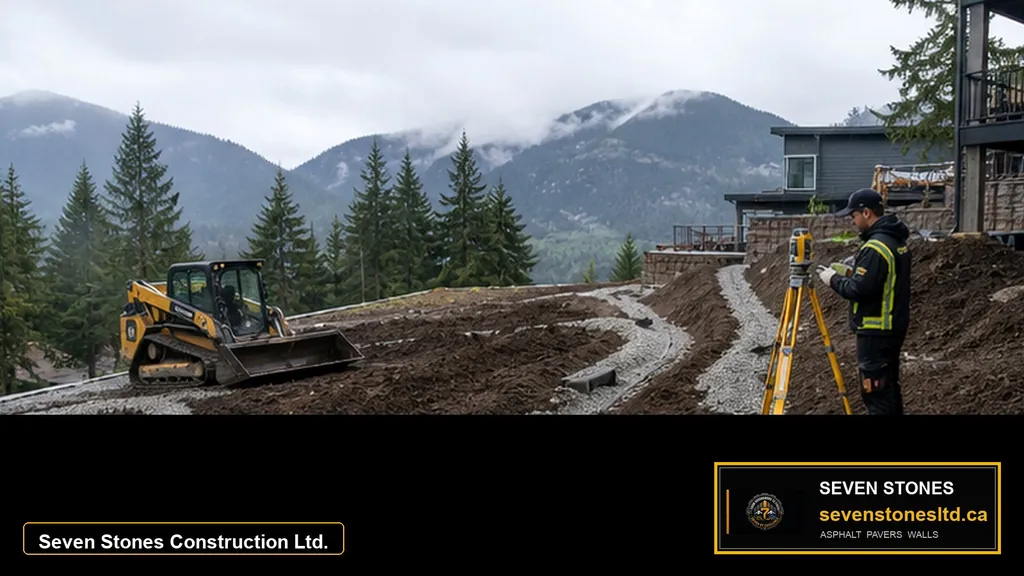

Evidence boundary: This is an educational planning guide. Illustrations are educational context only, not evidence of completed Seven Stones customer work. Photos can document visible context but cannot establish design, cause, compliance, or hidden conditions.
